Calculate the IPN HASH signature

Overview

Using the IPN HASH signature is optional, and it's only meant for source validation.

Availability

Available for all 2Checkout accounts.

1

Build the IPN HASH source string

To build the HMAC_SHA source string (sent in the IPN payload), prepend each value (Sample value column in the Example table below) with its own length (Field length column) in bytes. Use the same parameter order as received in the payload — changing the order will produce a different HMAC_SHA string.

• Use 0 for null or empty values (do not prepend their length).

• If the value is the character "0" (zero), prepend its length (1).

• For UTF-8 characters, the length in bytes can be longer than the number of characters. Use multibyte-aware methods that return the number of bytes (e.g., in PHP use strlen on the UTF-8-encoded string rather than character-counting functions).

Each value from the body of the IPN call needs to be included in the string in the exact same sequence as you received it in the IPN payload. This must match the HASH property in the IPN body for the request to be considered valid.

2

Example parameters

Field name	Field length	Sample value
SALEDATE	19	2016-06-01 12:22:09
REFNO	7	1000037
REFNOEXT	0
ORDERNO	2	13
ORDERSTATUS	8	COMPLETE
PAYMETHOD	13	Wire transfer
FIRSTNAME	4	John
LASTNAME	5	Smith
COMPANY	0
REGISTRATIONNUMBER	0
FISCALCODE	0
CBANKNAME	0
CBANKACCOUNT	0
ADDRESS1	15	101 Main Street
ADDRESS2	0
CITY	8	New York
STATE	8	New York
ZIPCODE	6	500365
COUNTRY	24	United States of America
PHONE	12	951-121-2121
FAX	0
CUSTOMEREMAIL	19	[e-mail]
FIRSTNAME_D	4	John
LASTNAME_D	5	Smith
COMPANY_D	0
ADDRESS1_D	15	101 Main Street
ADDRESS2_D	0
CITY_D	8	New York
STATE_D	8	New York
ZIPCODE_D	6	500365
COUNTRY_D	24	United States of America
PHONE_D	12	951-121-2121
IPADDRESS	14	213.233.121.50
CURRENCY	3	USD
IPN_PID[0]	1	1
IPN_PNAME[0]	16	Software program
IPN_PCODE[0]	5	PM_11
IPN_INFO[0]	0
IPN_QTY[0]	1	1
IPN_PRICE[0]	5	29.00
IPN_VAT[0]	4	0.00
IPN_VER[0]	0
IPN_DISCOUNT[0]	4	0.00
IPN_PROMONAME[0]	0
IPN_DELIVEREDCODES[0]	0
IPN_TOTAL[0]	5	29.00
IPN_TOTALGENERAL	5	34.00
IPN_SHIPPING	4	5.00
IPN_COMMISSION	4	3.38
IPN_DATE	14	20050303123434
TEST_ORDER	1	1

3

Source string example

Using the example table above, the HMAC source string (each value prepended by its byte length, with no added spaces) is:

192016-06-01 12:22:097100003702138COMPLETE13Wire transfer4John5Smith9BV-66778800000015101 Main Street08New York8New York650036524United States of [e-mail]4John5Smith015101 Main Street08New York8New York650036524United States of America12951-121-212114213.233.121.503USD1116Software program5PM_11011529.0040.00040.0000529.00534.0045.0043.38142005030312343411

4

Secret key and resulting hashes

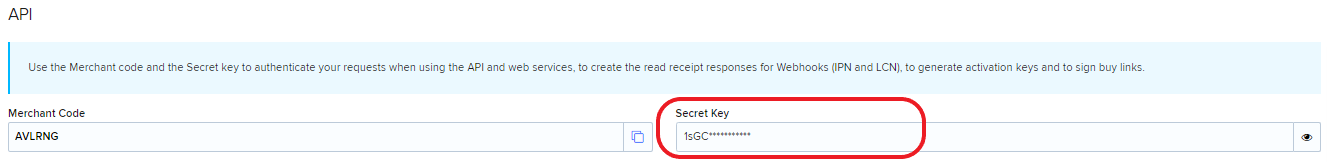

• Secret Key in this example: AABBCCDDEEFF To find your Secret Key, log in to the Merchant Control Panel: https://secure.2checkout.com/cpanel and navigate to Integrations → Webhooks & API (API section). You can find the Secret Key in the API section, as shown in this image:

•

  secret key in merchant control panel.png
• For the source string above, the SHA-2 (sha256) HASH value is:

d80f8520e989904df0d2b3caa710ba9907456ac6545eb75e357b10728234e495

• For the source string above, the SHA-3 (sha3-256) HASH value is:

d0464d5712e893efc292be66ac6538bc4493706bd9deb43eae409142e848400e

Use the examples below to test creating the IPN HASH and the response for the data supplied in this article.

PHP Hash Example

/* 2Checkout IPN HASH example */

/*
 * possible values: sha256, sha3-256
 * sha3-256 only for php version > 7.1
 */
$used_hash_algorithm = 'sha256';

/* pass to compute HASH. Retrieve your secret key by accessing https://secure.2checkout.com/cpanel/webhooks_api.php */
$secret_key = 'AABBCCDDEEFF';

date_default_timezone_set('UTC');

echo '<pre>';

//*********FUNCTIONS FOR HMAC*********
function serializeArray($array) {
    $retval = "";
    foreach ($array as $i => $value) {
        if (is_array($value)) {
            $retval .= serializeArray($value);
        }
        else {
            $size = strlen($value);
            $retval .= $size . $value;
        }
    }
    return $retval;
}

//PARAMETERS
$IPN_parameters = array();
$IPN_parameters['SALEDATE'] = '2016-06-01 12:22:09';
$IPN_parameters['REFNO'] = '1000037';
$IPN_parameters['REFNOEXT'] = '';
$IPN_parameters['ORDERNO'] = '13';
$IPN_parameters['ORDERSTATUS'] = 'COMPLETE';
$IPN_parameters['PAYMETHOD'] = 'Wire transfer';
$IPN_parameters['FIRSTNAME'] = 'John';
$IPN_parameters['LASTNAME'] = 'Smith';
$IPN_parameters['COMPANY'] = '';
$IPN_parameters['REGISTRATIONNUMBER'] = '';
$IPN_parameters['FISCALCODE'] = '';
$IPN_parameters['CBANKNAME'] = '';
$IPN_parameters['CBANKACCOUNT'] = '';
$IPN_parameters['ADDRESS1'] = '101 Main Street';
$IPN_parameters['ADDRESS2'] = '';
$IPN_parameters['CITY'] = 'New York';
$IPN_parameters['STATE'] = 'New York';
$IPN_parameters['ZIPCODE'] = '500365';
$IPN_parameters['COUNTRY'] = 'United States of America';
$IPN_parameters['PHONE'] = '951-121-2121';
$IPN_parameters['FAX'] = '';
$IPN_parameters['CUSTOMEREMAIL'] = '[e-mail]';
$IPN_parameters['FIRSTNAME_D'] = 'John';
$IPN_parameters['LASTNAME_D'] = 'Smith';
$IPN_parameters['COMPANY_D'] = '';
$IPN_parameters['ADDRESS1_D'] = '101 Main Street';
$IPN_parameters['ADDRESS2_D'] = '';
$IPN_parameters['CITY_D'] = 'New York';
$IPN_parameters['STATE_D'] = 'New York';
$IPN_parameters['ZIPCODE_D'] = '500365';
$IPN_parameters['COUNTRY_D'] = 'United States of America';
$IPN_parameters['PHONE_D'] = '951-121-2121';
$IPN_parameters['IPADDRESS'] = '213.233.121.50';
$IPN_parameters['CURRENCY'] = 'USD';
$IPN_parameters['IPN_PID'][0] = '1';
$IPN_parameters['IPN_PNAME'][0] = 'Software program';
$IPN_parameters['IPN_PCODE'][0] = 'PM_11';
$IPN_parameters['IPN_INFO'][0] = '';
$IPN_parameters['IPN_QTY'][0] = '1';
$IPN_parameters['IPN_PRICE'][0] = '29.00';
$IPN_parameters['IPN_VAT'][0] = '0.00';
$IPN_parameters['IPN_VER'][0] = '';
$IPN_parameters['IPN_DISCOUNT'][0] = '0.00';
$IPN_parameters['IPN_PROMONAME'][0] = '';
$IPN_parameters['IPN_DELIVEREDCODES'][0] = '';
$IPN_parameters['IPN_TOTAL'][0] = '29.00';
$IPN_parameters['IPN_TOTALGENERAL'] = '34.00';
$IPN_parameters['IPN_SHIPPING'] = '5.00';
$IPN_parameters['IPN_COMMISSION'] = '3.38';
$IPN_parameters['IPN_DATE'] = '20050303123434';
$IPN_parameters['TEST_ORDER'] = '1';

//*********Base string for SHA2-256/SHA3-256 calculation:*********
echo "This is the base string for SHA2-256/SHA3-256 calculation: ";
$result = '';

foreach ($IPN_parameters as $key => $val){
    $result .= serializeArray((array)$val);
}
var_dump($result);

//*********Calculated SHA2-256/SHA3-256 signature:*********
switch ($used_hash_algorithm) {
    case 'sha256':
        echo "This is the SHA2-256 signature: ";
        $hash = hash_hmac('sha256', $result, $secret_key);
        $IPN_parameters['SIGNATURE_SHA2_256'] = $hash;
        var_dump($hash);
        break;
    case 'sha3-256':
        echo "This is the SHA3-256 signature: ";
        $hash = hash_hmac('sha3-256', $result, $secret_key);
        $IPN_parameters['SIGNATURE_SHA3_256'] = $hash;
        var_dump($hash);
        break;
}

PHP Hash Response Example

$IPN_parameters_response = array();
$IPN_parameters_response['IPN_PID'][0] = '1';
$IPN_parameters_response['IPN_PNAME'][0] = 'Software program';
$IPN_parameters_response['IPN_DATE'] = '20050303123434';
$IPN_parameters_response['DATE'] = '20050303123434';

//*********Response base string for SHA2-256/SHA3-256 calculation:*********
echo "This is the response base string for SHA2-256/SHA3-256 calculation: ";
$result_response = '';
foreach ($IPN_parameters_response as $key => $val){
    $result_response .= serializeArray((array)$val);
}
var_dump($result_response);

//*********Calculated response SHA2-256/SHA3-256 signature:*********
$responseString = '';
switch ($used_hash_algorithm) {
    case 'sha256':
        echo "This is the response SHA2-256 signature: ";
        $hash = hash_hmac('sha256', $result_response, $secret_key);
        var_dump($hash);
        $responseString = '<sig algo="sha256" date="' . $IPN_parameters_response['DATE'] . '">' . $hash . '</sig>' . PHP_EOL;
        break;
    case 'sha3-256':
        echo "This is the response SHA3-256 signature: ";
        $hash = hash_hmac('sha3-256', $result_response, $secret_key);
        var_dump($hash);
        $responseString = '<sig algo="sha3-256" date="' . $IPN_parameters_response['DATE'] . '">' . $hash . '</sig>' . PHP_EOL;
        break;
}

//Expected response
echo 'Expected response:' . PHP_EOL . $responseString;

Validation

Node.JS (ES6) sample

let hashString = '';
let valueLengthInBytes;
function byteLength(str) {
let s = str.length;
for (let i = str.length-1; i>=0; i--) {
var code = str.charCodeAt(i);
if (code > 0x7f && code <= 0x7ff) s++;
else if (code > 0x7ff && code <= 0xffff) s+=2;
if (code >= 0xDC00 && code <= 0xDFFF) i--;
}
return s;
}
Object.keys(request.params).forEach(function(key) {
valueLengthInBytes = byteLength(request.params[key].toString());
if (valueLengthInBytes > 0) {
hashString += valueLengthInBytes + request.params[key].toString();
}
});

Python sample (Flask)

 from urllib import request
from flask import Flask, jsonify, request, Request
from urllib.parse import urlencode, urldefrag
from werkzeug.datastructures import ImmutableOrderedMultiDict
class MyRequest(Request):
parameter_storage_class = ImmutableOrderedMultiDict
class MyFlask(Flask):
request_class = MyRequest
app = MyFlask(__name__)
def bytes_length(string):
return len(string.encode('utf-8'))
def calculate_hash_string(payload_tuple_list):
hash_string = ''
for payload_key in payload_tuple_list:
payload_value = payload_tuple_list[payload_key]
bytes = bytes_length(payload_value)
if bytes > 0:
hash_string = hash_string + str(bytes) + payload_value
return hash_string
@app.route('/ipn', methods=['POST'])
def ipn():
ipn_payload_received = request.form
return calculate_hash_string(ipn_payload_received)
if __name__ == '__main__':
app.run()

Verifone IPN send request sample

For the parameters listed below the request sample is:

POST /vg8NfWXNBmaW8Lrsarfu HTTP/1.1
Host: putsreq.com
Content-Type: application/x-www-form-urlencoded
Cookie: __cfduid=d9526a7dbe99fe081deef1ae1940420891612782045;
owner_token=9631c27fbfa38e7da850137e6c23f7cceba0450debcd834a
Content-Length: 218
GIFT_ORDER=0&SALEDATE=2021-02-04 09:11:30&PAYMENTDATE=2021-02-04
09:14:53&REFNO=11758694&REFNOEXT=&SHOPPER_REFERENCE_NUMBER
=&IPCOUNTRY=&CURRENCY=USD&IPN_PID[]=30969748&IPN_PNAME[]=Antivi
rus 2021&IPN_DATE=20210208063206

IPN Parameter table

IPN Parameter	Value
GIFT_ORDER	0
SALEDATE	2021-02-04 09:11:30
PAYMENTDATE	2021-02-04 09:14:53
REFNO	11758694
REFNOEXT
SHOPPER_REFERENCE_NUMBER
IPCOUNTRY
CURRENCY
IPN_PID[]	30969748
IPN_PNAME[]	Product name
IPN_DATE	20210208063206
